電量傳感器

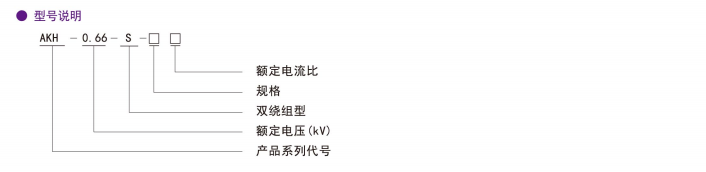

AKH-0.66S系列雙繞組型電流互感器
|
規格 |
額定電流比(A) |
準確級及相應額定負荷(VA) |
穿心匝數(匝) |
母排規格(mm)/根數 |
電纜最大外徑(mm) |
安裝方式 |
||
|
0.2/0.2級 |
0.5/0.2級 |
1/0.2級 |
||||||
|
S-30I |
5/5(1)/0.02 |
|
|
2.5/0.02 |
15 |
/
|
φ22 |
F |
|
10/5(1)/0.02 |
|
|
2.5/0.02 |
8 |
||||
|
15/5(1)/0.02 |
|
|
2.5/0.02 |
5 |
||||
|
20/5(1)/0.02 |
|
|
2.5/0.02 |
4 |
||||
|
25-30/5(1)/0.02 |
|
|
2.5/0.02 |
3 |
||||
|
40-60/5(1)/0.02 |
|
|
2.5/0.02 |
2 |
||||
|
75-100/5(1)/0.02 |
|
|
2.5/0.02 |
1 |
30×10/1 |
B,F |
||
|
150/5(1)/0.02 |
|
2.5/0.02 |
|
1 |
||||
|
200/5(1)/0.02 |
|
5.0/0.02 |
|
1 |
||||
|
S-40I |
200/5(1)/0.02 |
|
5.0/0.02 |
|
1 |
40×10/1 |
φ30 |
C,F |
|
250-400/5(1)/0.02 |
|
5.0/0.02 |
|
1 |
||||
|
500-600/5(1)/0.02 |
|
10/0.02 |
|
1 |
||||
|
S-50Ⅱ |
600-800/5(1)/0.02 |
|
10/0.02 |
|
1 |
50×10/ 1-2 |
/ |
B |
|
1000/5(1)/0.02 |
15/0.02 |
|
|
1 |
||||
|
1200-1250/5(1)/0.02 |
20/0.02 |
|
|
1 |
||||
|
S-60Ⅱ |
300-400/5(1)/0.02 |
|
5.0/0.02 |
|
1 |
60×10/ 1-2 |
/ |
C |
|
500-800/5(1)/0.02 |
|
10/0.02 |
|
1 |
||||
|
1000-1250/5(1)/0.02 |
10/0.02 |
|
|
1 |
||||
|
1500-2000/5(1)/0.02 |
20/0.02 |
|
|
1 |
||||
|
S-80Ⅱ |
600-800/5(1)/0.02 |
|
10/0.02 |
|
1 |
80×10/ 1-2 |
/ |
|
|
1000-1250/5(1)/0.02 |
10/0.02 |
|
|
1 |
||||
|
1500-2000/5(1)/0.02 |
20/0.02 |
|
|
1 |
||||
|
2500-3000/5(1)/0.02 |
30/0.02 |
|
|
1 |
||||
|
S-100Ⅱ |
1000-1250/5(1)/0.02 |
10/0.02 |
|
|
1 |
100×10/ 1-3 |
/ |
D |
|
1500-2000/5(1)/0.02 |
20/0.02 |
|
|
1 |
||||
|
2500-3000/5(1)/0.02 |
30/0.02 |
|
|
1 |
||||
|
4000/5(1)/0.02 |
30/0.02 |
|
|
1 |
||||
|
S-120Ⅱ |
2000/5(1)/0.02 |
20/0.02 |
|
|
1 |
120×10/ 1-3 |
/ |
|
|
2500-3000/5(1)/0.02 |
30/0.02 |
|
|
1 |
||||
|
4000-5000/5(1)/0.02 |
30/0.02 |
|
|
1 |
||||
|
S-200Ⅱ |
2000/5(1)/0.02 |
20/0.02 |
|
|
1 |
100×10/ 2-6 |
/ |
|
|
2500-3000/5(1)/0.02 |
30/0.02 |
|
|
1 |
||||
|
4000-6300/5(1)/0.02 |
30/0.02 |
|
|
1 |
||||
